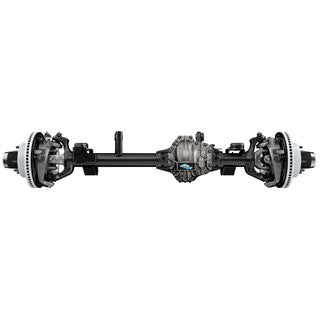

Dana DS10034267 Ultimate Dana 60 Crate Axle JK - Front 3.73 Ratio Eaton E-Locker. 8X6.5" Wheel Bolt Pattern.
Engineered to be a direct-fit, bolt-in solution for the Jeep Wrangler JK, Ultimate Dana 60™ axles are built for superior strength inside and out.
The full-float design of the Ultimate Dana 60™ axle means that the vehicle weight is carried by the housing instead of the shaft. So, you can enjoy a greater load-carrying ability wherever your Jeep takes you. The Ultimate Dana 60™ axle features Spicer® 35 spline SAE-4340 nickel chromoly steel axle shafts to help meet the rigors of off-road, providing maximum strength and durability for vehicles with larger tires.
Ultimate Dana 60™ axles are designed to give you an advantage across even the most brutal terrain:
- Spicer® 35 spline SAE-4340 nickel chromoly steel axle shafts
- Axle tubes: 3.5" outside diameter/.370" (front) or .390" (rear) wall thickness
- Spicer® ring and pinion gearing: 10" (256 mm) on front axles and 9.75" (248 mm) on rear
- Genuine “Made in the USA” gearing
- Heavy-duty 8" x 6.5" wheel bolt pattern
- Nodular iron diff cover
- Selectable electronic locking differentials
- Heavy-duty brackets
- Spicer® 1350 strap-style/half-round end yoke
- Upgraded heavy-duty brakes with plug-and-play ABS system
